Hangzhou Dongjie Intelligent Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of smart weighing material cabinet in China. If you're going to wholesale bulk discount smart weighing material cabinet, welcome to get quotation from our factory. We also accept customized orders.

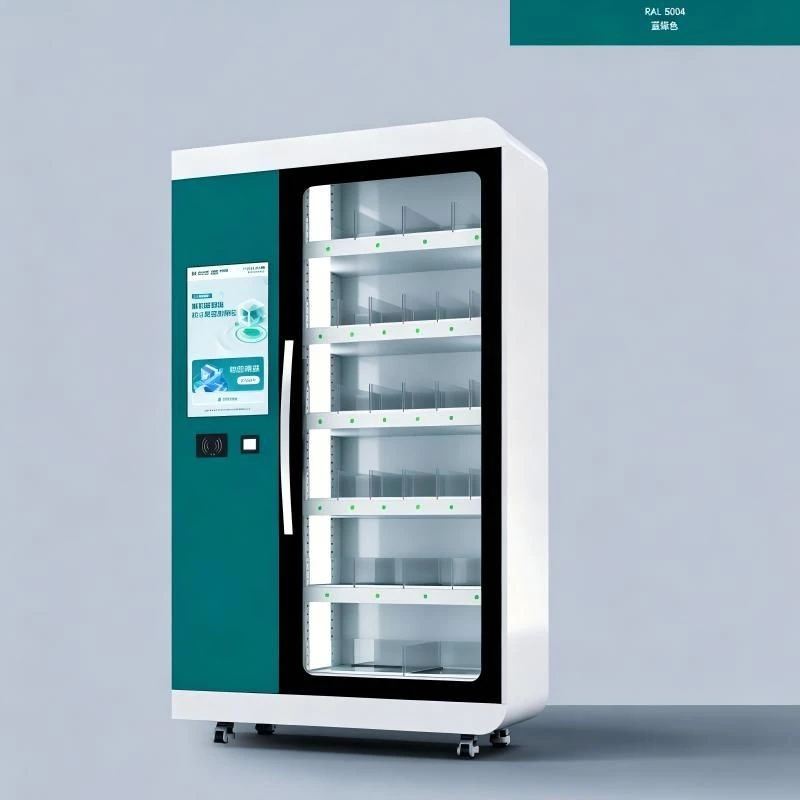

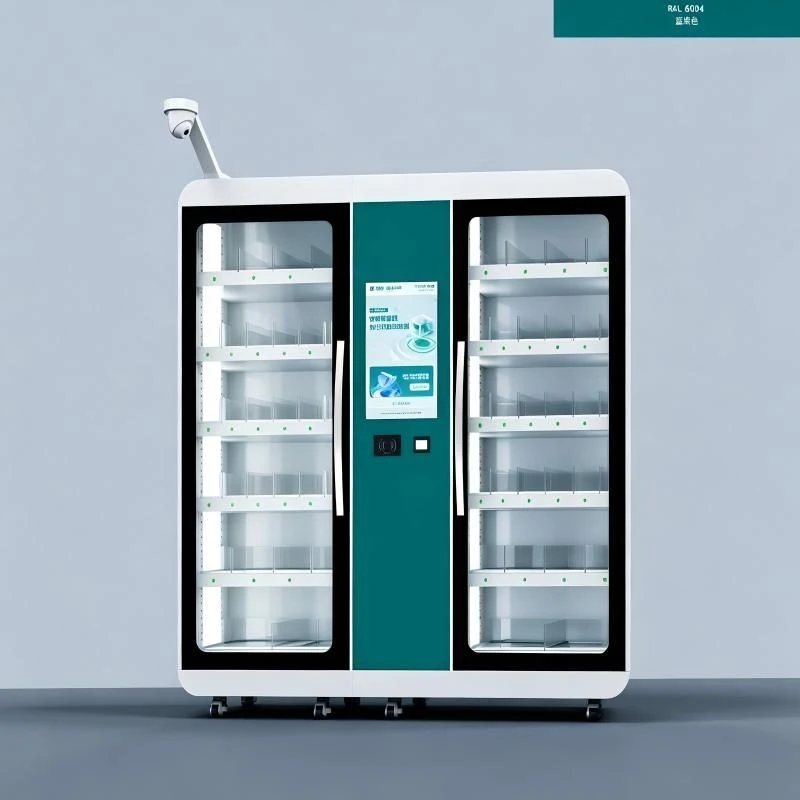

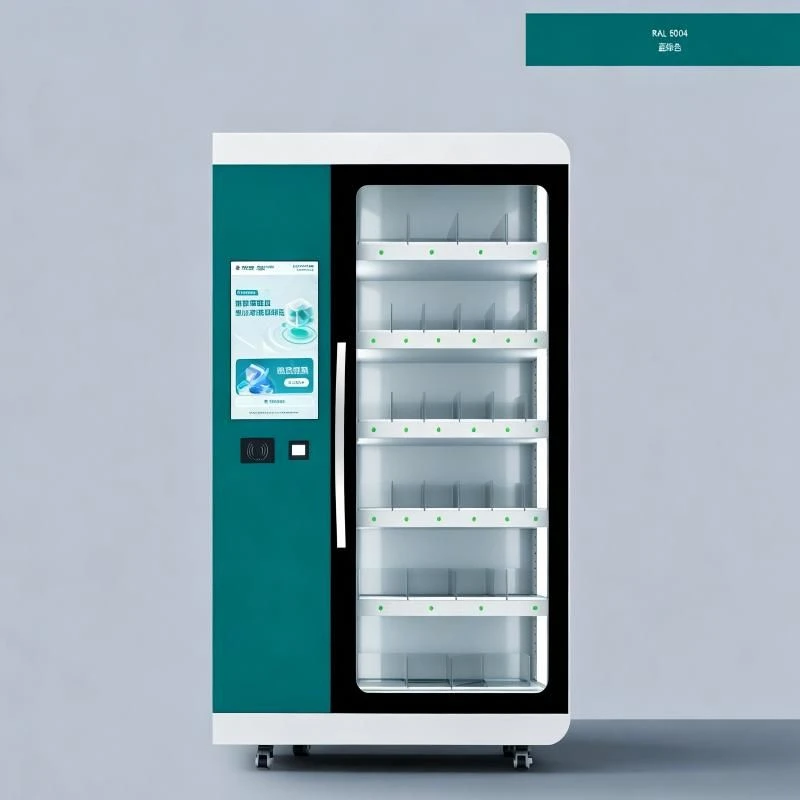

Our intelligent weighing material cabinet is an intelligent material management device that integrates intelligent storage, high-precision automatic weighing, identity and access control, and IoT data traceability. Each storage compartment is equipped with an independent high-precision weighing sensor, coupled with an intelligent control system and cloud management platform. It eliminates the need for manual registration and inventory checks, enabling automatic material storage and retrieval, automatic inventory updates, and full operation traceability. This fully automated, unattended management system is widely applicable to the refined management needs of materials, consumables, and tools in various scenarios such as industry, laboratories, medical facilities, and warehousing.
Key Features
Automatic and Precise Metering:
Each compartment has an independent weighing module. After material storage and retrieval, the system automatically calculates the weight difference and intelligently converts the material requisition quantity. No manual counting, weighing, or registration is required, making it suitable for managing various irregular and scattered materials.
01

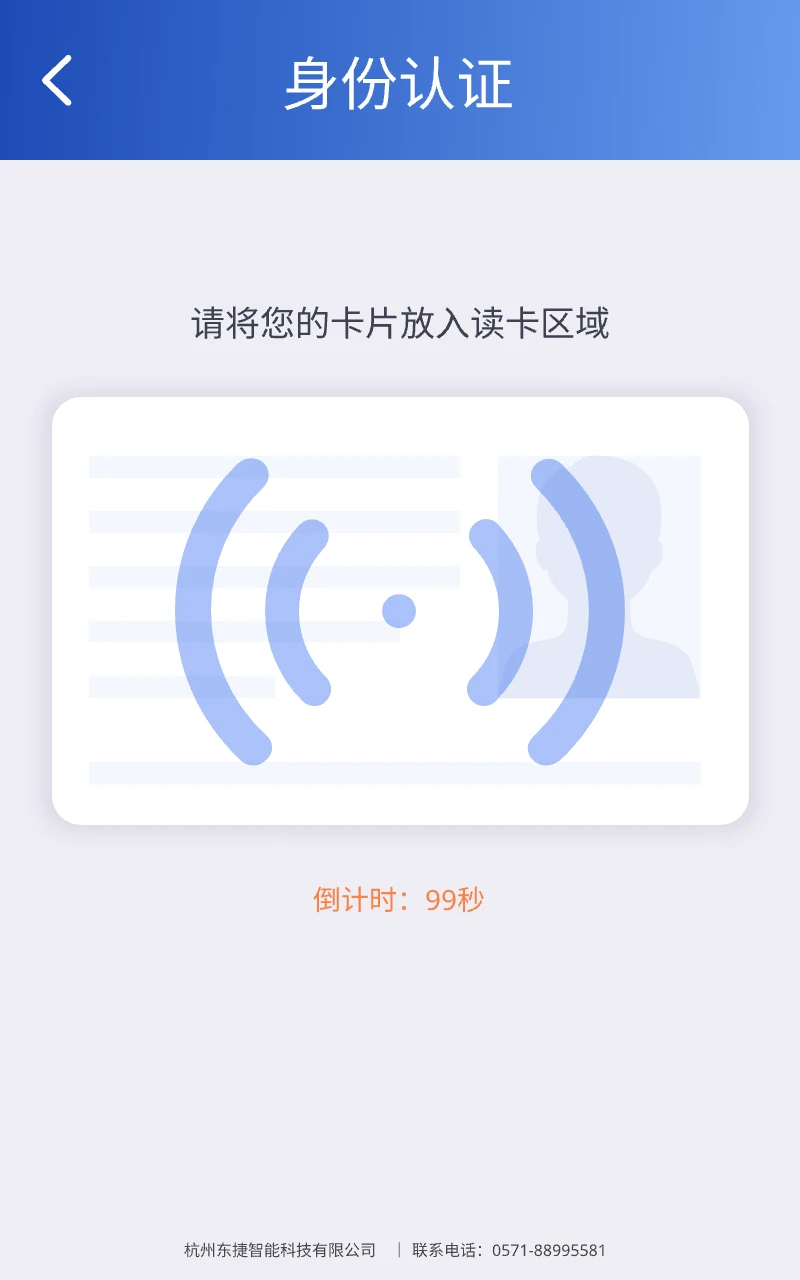

Hierarchical Access Control:
Supports hierarchical authorization for personnel. Different positions have different access permissions. The entire process records the operator, time, and material quantity, and the operation log is permanently stored for traceability and verification at any time.
02
Unattended Storage and Retrieval:
24-hour self-service material storage and retrieval. Access is granted upon identity verification. After closing the door, the equipment automatically completes metering and inventory updates, requiring no dedicated personnel.
03
Intelligent Inventory Warning:
Real-time dynamic updates of inventory data. The system automatically sends pop-up windows and message alerts when materials are low in stock, over-stored, or abnormally damaged, preventing material shortages from affecting production.
04
Data Integration:
Can be integrated with ERP, WMS, and other enterprise management systems, automatically generating consumption reports, inventory ledgers, and requisition trend analysis, replacing manual statistics and achieving digital management of material data.
05

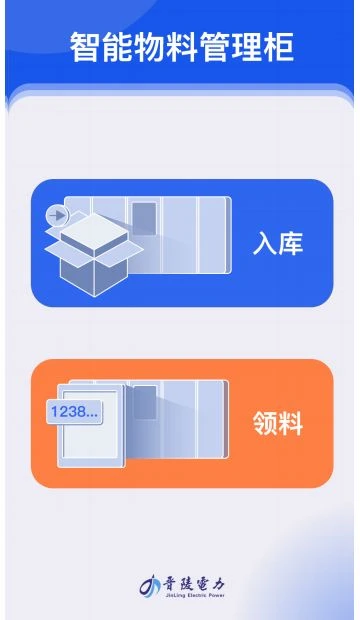

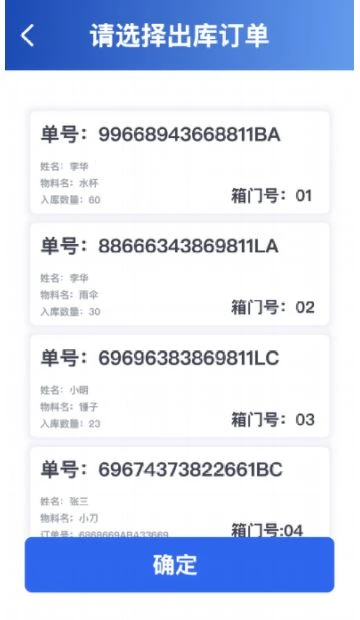

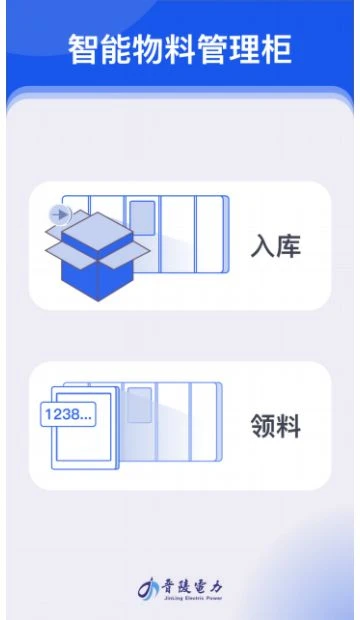

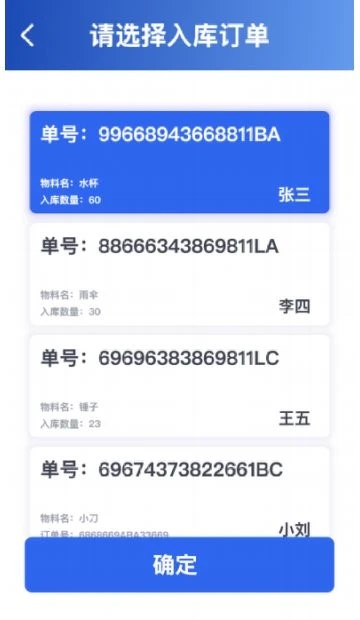

Management System
Technical parameters
| Basic attributes | Performance Parameters | ||
| Brand | Dongjie | operating system |
Windows/ANDROID(Customizable) |
| Model |
DJ-CZ-ZNG |
Industrial control configuration | i5-6200U dual-core 2.3GHz, 8GB RAM + 128GB HDD |
| Product Name | Intelligent weighing material cabinet | Identification method | Card swipe, QR code scan, account password |
| Screen size | 21-inch (customizable) | Physical parameters | |
| High-precision weighing module | Overall Dimensions | Height 1870mm, Width 1200mm, Depth 550mm (Customizable) | |
| Maximum capacity and accuracy range |
15kg/0.1g(customizable) |
Material | Galvanized steel sheet/Cold-rolled steel sheet/Stainless steel sheet |
| Identification permissions | Touchscreen Specification | Capacitive touchscreen | |
| High-frequency card swiping | standard | Communication Interface | Ethernet port/Serial port |
| Bar scanning | standard | Fixing/Moving Method | Casters |
| Network | optional | Operating Environment | |
| Surveillance camera | optional | Operating Temperature |
0-60℃ |
| Development support | Operating Humidity |
10%-90%RH |
|
| Integration support | API interface | Power Supply | |
| Development languages |
Java ,C#,ANDROID |
Power Input |
220V |
| Secondary development |
SDK |
Rated Power |
≤120W |
Application scenarios
The need for refined management of materials, consumables, and tools in various scenarios such as industry, laboratories, medical care, and warehousing.
FAQ
Q: What are the functions of this smart weighing cabinet?
A: It supports automatic weighing, material storage, data recording, inventory statistics, and access authorization management.
Q: What types of materials can it store and weigh?
A: Suitable for spare parts, tools, raw materials, accessories, and small industrial supplies.
Q: Can the weighing data be uploaded to the management system?
A: Yes, data can be synchronized in real time, and historical records can be queried and exported.
Q: Does it have a security protection design?
A: It has a built-in anti-theft lock, weight deviation alarm, and abnormal entry/exit alert to ensure the safety of materials.
