Hangzhou Dongjie Intelligent Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of smart key cabinet in China. If you're going to wholesale bulk discount smart key cabinet, welcome to get quotation from our factory. We also accept customized orders.

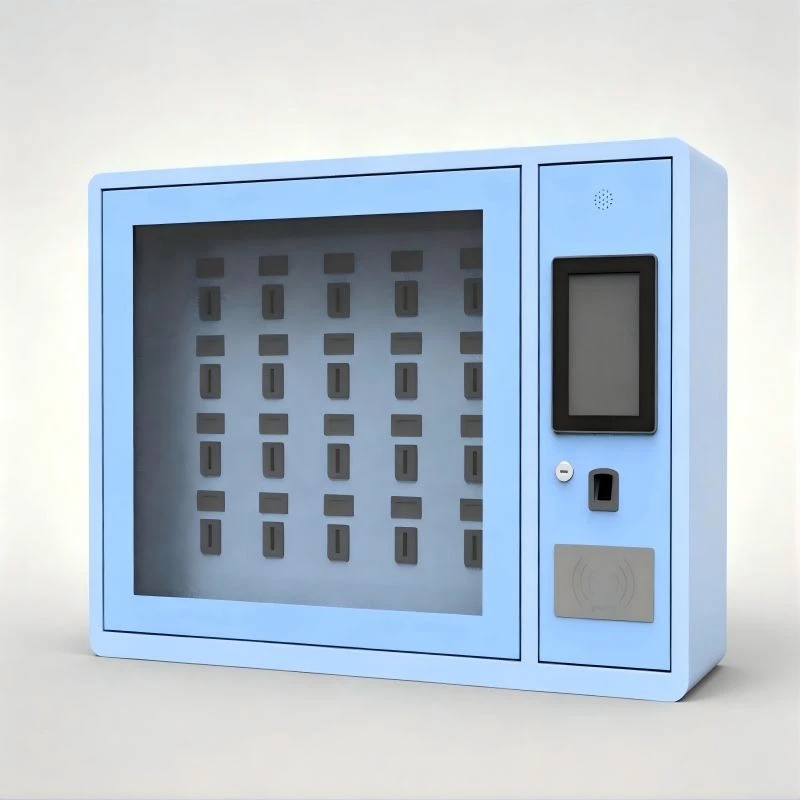

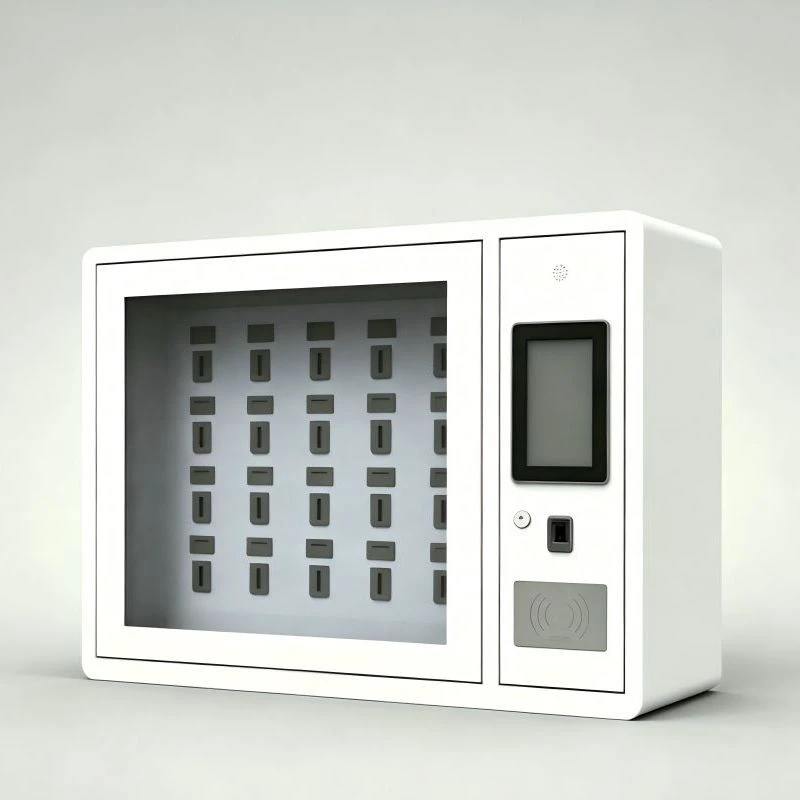

The cabinet is constructed from thickened cold-rolled steel plate and features a transparent window for easy inventory checks. Modular key slots start at 20 and can be expanded to over 100, offering long-term compatibility with a one-time investment.
The multi-functional touchscreen integrates fingerprint, card, password, and remote authorization unlocking methods. Each access is automatically recorded and synchronized to the cloud in real time, ensuring a complete operational record and preventing unauthorized access.
The device supports 24/7 unattended operation, with built-in hierarchical access control and customizable time settings, making it suitable for various scenarios such as corporate offices, car rentals, hotels, and industrial parks. Low battery alerts ensure uninterrupted operation.
CE/RoHS certified, it offers a 1-year warranty and global technical support.
Product Advantages
1. One-to-one key binding:
Each key slot is equipped with a unique smart key fob with an independent ID. The system can accurately track the location of each key in its corresponding slot in real time-preventing confusion and untracked loss.
2. Role-based access control:
Super administrators, department managers, and regular users can all be restricted to specific permissions and time windows. Suitable for organizations requiring granular control over user permissions.
3. Complete access logs:
Every loan and return of critical items records the user's identity, timestamp, and device details. All records are stored in the cloud and can be exported at any time for auditing and verification.
4. Overdue and tampering alerts:
Late returns, unauthorized attempts to remove keys, and returns at the wrong time will trigger real-time voice alerts and backend notifications.
5. 24/7 unattended operation mode:
Staff can independently operate keys using badges, barcodes, or facial recognition technology, without the need for reception or key management personnel.
6. Encrypted data storage:
Access records are encrypted locally and backed up to the cloud.
7. Offline Operation:
The rack can continue to operate normally during network outages. Once the connection is restored, all transaction data will be automatically synchronized.

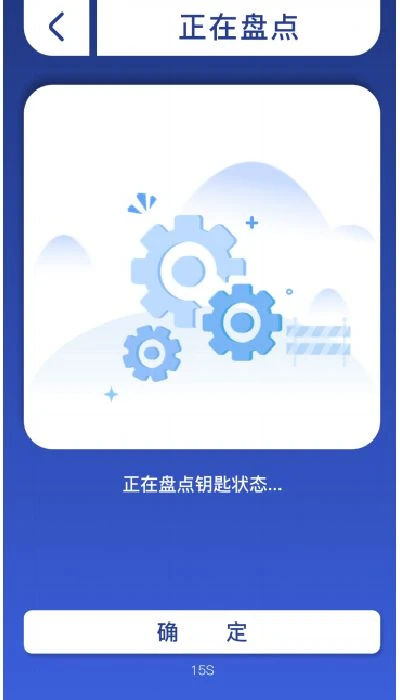

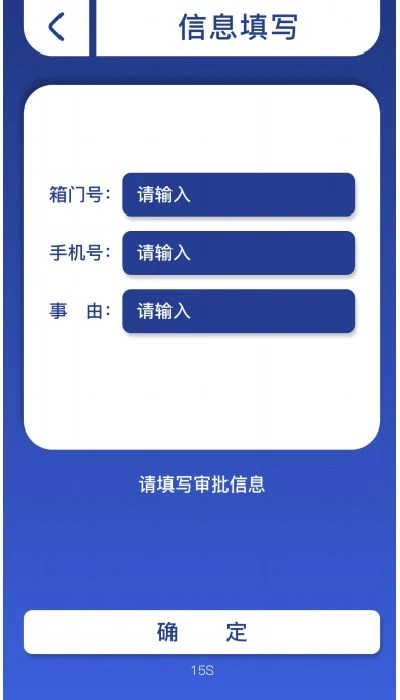

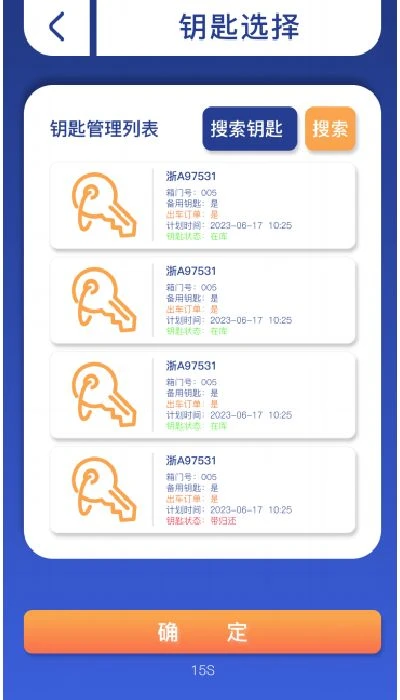

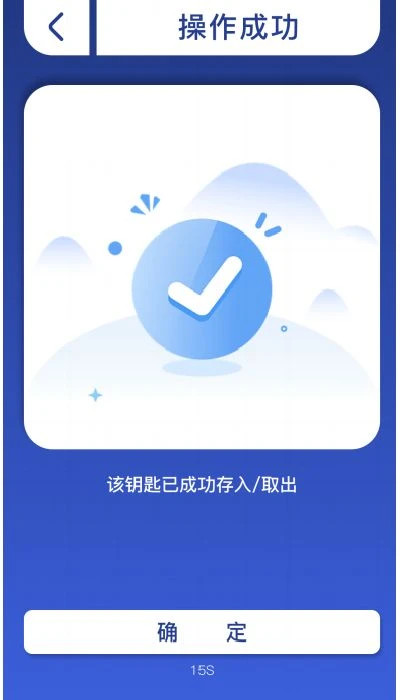

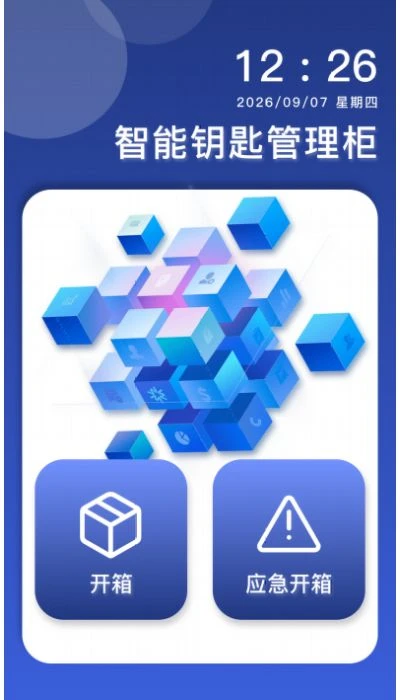

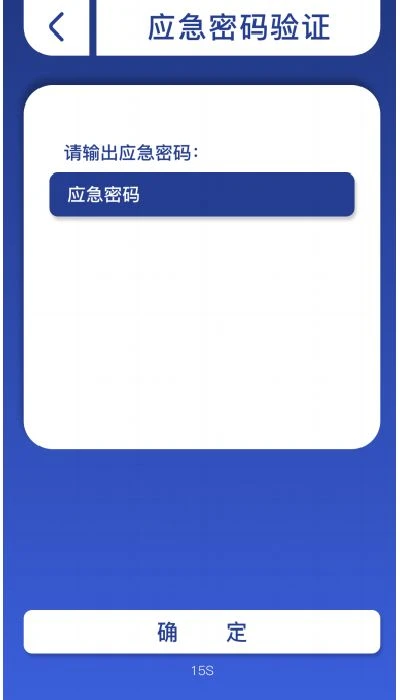

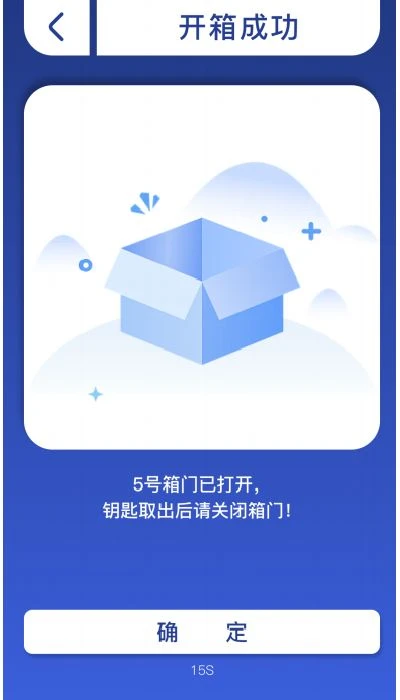

Management System
Technical parameters
| Basic attributes | Performance Parameters | ||
| Brand | Dongjie | operating system |
Windows/ANDROID |
| Model |
DJ-ZNYS-01 |
Industrial Control Configuration |
I7+16+512/RK 3568+8+32 |
| Product Name | Intelligent weighing material cabinet | Identification Methods | Card swipe, palm print recognition, account password |
| Screen size | 7 inches | Physical Parameters | |
| Ultra-High Frequency RFID | Overall Dimensions | ||
| Frequency Range |
840MHz～960MHz |
Material | Cold-rolled steel plate/Galvanized steel plate/Stainless steel plate |
| RF Protocol Standard | Supports all mandatory commands of ISO18000-6C/6B, and can simultaneously support GB/T29768 and GJB7377.1 protocols | Touchscreen Specifications | Capacitive touchscreen |
| Identification Access | Communication Interface | Ethernet port/Serial port | |
| High-frequency card swipe | standard | Fixed/Movable Method | Wall-mounted |
| Fingerprint | optional | Operating Environment | |
| Surveillance camera | optional | Operating Temperature |
-20-60℃ |
|
Wifi |
optional | Operating Humidity |
10%-90%RH |
| Development Support | Power Supply | ||
| Development Support | API Interface | Power Input |
220V |
| Development Languages |
Java ,C#,ANDROID |
Rated Power |
≤150W |
| Secondary Development |
SDK |
||
FAQ
Q: What is the warranty period?
A: 1-year warranty on the entire machine, covering all core electronic components, with no additional conditions.
Q: What if problems occur after installation?
A: 24/7 remote support, including video calls or remote equipment takeover; most problems can be resolved in one go.
Q: What if I need spare parts later?
A: Commonly used spare parts are readily available, with worldwide shipping; no need to worry about delivery times.
Q: Do I need to handle the installation myself?
A: We provide a detailed installation manual and free remote installation guidance. For large projects, we can also assist in connecting with local installation resources.
