Hangzhou Dongjie Intelligent Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of electronic smart lockers in China. If you're going to wholesale bulk discount electronic smart lockers, welcome to get quotation from our factory. We also accept customized orders.

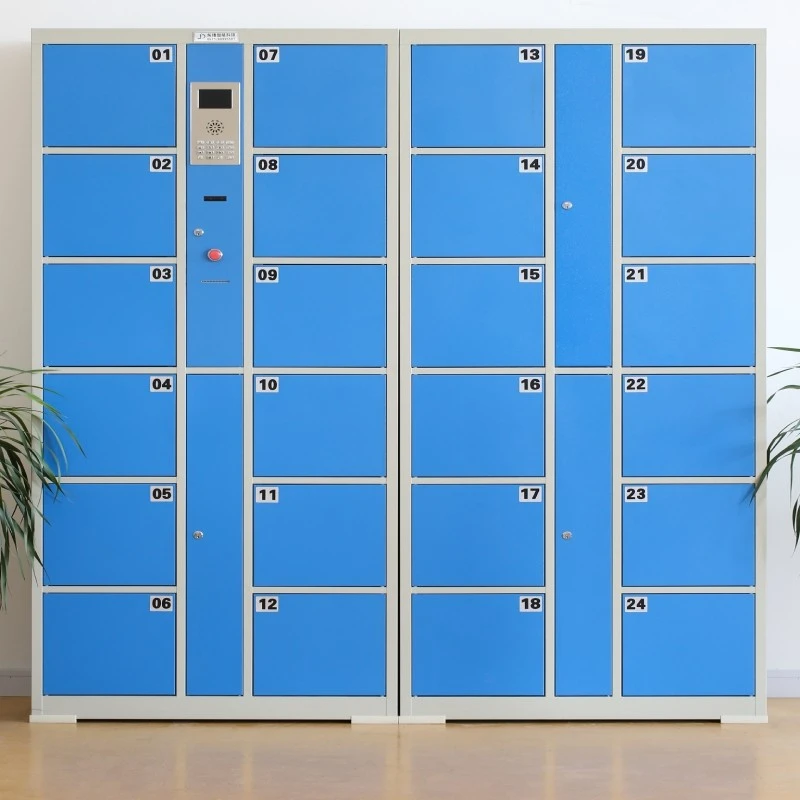

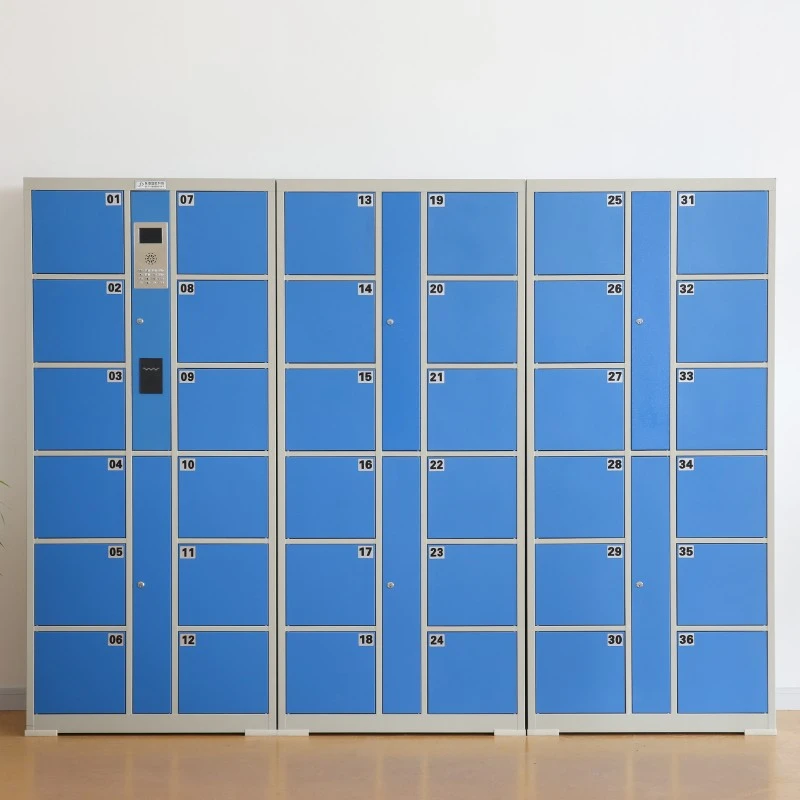

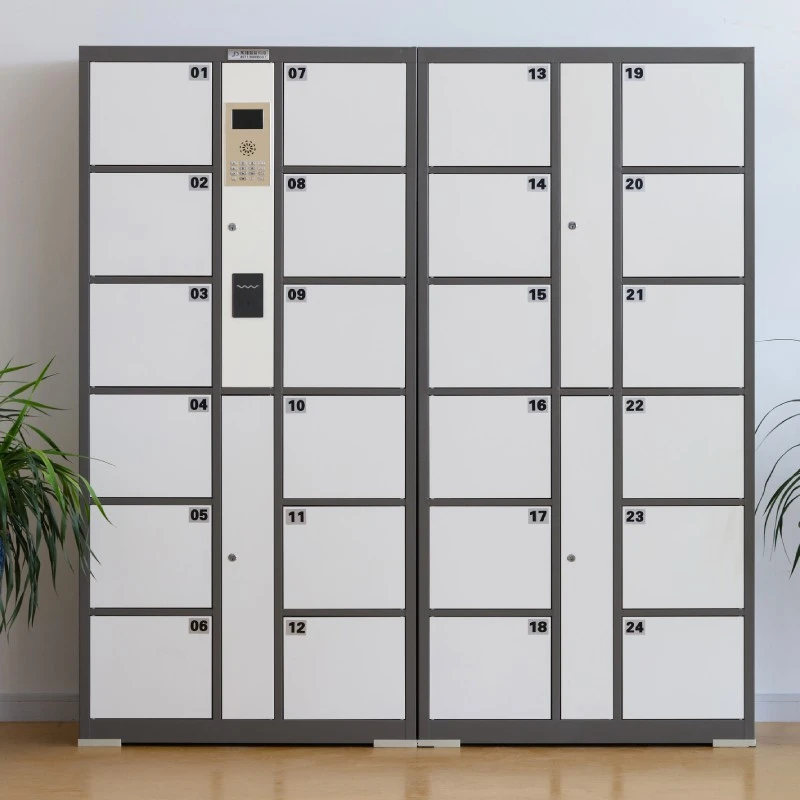

This electronic intelligent storage cabinet is made of 1.0mm thick cold-rolled steel plate, with a surface treated by electrostatic spraying, which is scratch resistant and corrosion-resistant. It can be maintained by daily wiping and is suitable for high-frequency use scenarios such as shopping malls, schools, corporate parks, sports venues, etc. The standard model has 12/24/36 independent storage compartments, each compartment can be unlocked independently without interfering with each other, and supports multiple cabinets to be combined side by side. The actual deployment quantity can be freely matched according to the site. There are two unlocking methods: built-in password and IC card swiping. Users can complete the access process on their own without the need for dedicated management personnel. The lock itself has an anti pry structure, and the backend system synchronously records each access operation for easy verification afterwards. The entire machine undergoes complete functional testing before leaving the factory and can be installed and put into use upon arrival.
Featured Features
Dynamic location allocation
The system can automatically match the available location sizes with the incoming items, reducing space waste without manual intervention.
01
Fault and status alarm
Door opening errors, timeout detection anomalies, and equipment failures will be immediately reported to the backend system without the need for personnel to conduct on-site inspections of the equipment.
02
Low power operation
The intelligent sleep and wake cycle function can significantly reduce power consumption during idle periods, thereby effectively reducing operating costs in long-term use scenarios.
03
Specially designed for high traffic use
using cold-rolled steel with anti rust coating, tested for high-frequency in and out circulation, suitable for transportation hubs and retail environments.
04
Wide operating temperature range
operating within the range of -20 ° C to 60 ° C, with IP54 protection level; It can adapt to different climate conditions and semi outdoor environments without modification.
05
Technical parameters
| Basic attributes | Performance Parameters | ||
| Brand | Dongjie | Operating System | Microcontroller |
| Model | DJ-ZNCW-02 | Screen size | 3.5 inches |
| Product Name | electronic smart lockers | Identification method | Barcode, swipe card, fingerprint, password |
| Physical Parameters | Operating Environment | ||
| Overall dimensions | H1800*L820*D450(customizable) | Operating Temperature | -20-60℃ |
| Material | Cold rolled steel/galvanized steel sheet/stainless steel sheet | Operating Humidity | 10%-90%RH |
| Touch screen specifications | Non touch screen | Power Supply | |
| communication interface | Network port/serial port | Power Input | 220V |
| Fixed/mobile mode | caster wheel | Rated Power | ≤150W |
Usage scenario
Temporary storage in public places such as shopping malls, schools, office buildings, residences, transportation hubs, etc.
shopping malls
schools
office buildings
residences
FAQ
Q: What is the difference between single-chip microcontroller and industrial control motherboard storage cabinets?
A: The single-chip microcontroller has high circuit integration, simple overall structure, low power consumption, and low probability of failure. It does not need to be paired with complex backend systems, and has a faster door response and affordable price. It is most suitable for small and medium-sized venues such as residential areas, construction sites, and street side shops.
Q: What are the default opening methods for cabinets? Can the unlocking mode be changed as needed?
A: Factory standard password and QR code for opening doors, card swiping function can be added later if desired; The main control program can be customized according to needs, and unused unlocking methods can be directly closed to meet different management requirements such as storage for construction site employees and temporary storage for shopping malls.
Q: What should be done if the power outage cabinet door cannot be opened? Is there an emergency unlocking method?
A: Each cabinet door is equipped with a dedicated mechanical spare key, which can be used to manually open the door when the whole machine is powered off; The motherboard comes with a power-off data storage function, which retains all previous storage records after a call and does not clear the data.
Q: Can the free storage duration and fee schedule be modified by oneself?
A: Parameters can be debugged directly on the cabinet panel, and the free storage time and overtime charging standards can be set freely. There is no need to connect to the computer backend to change data, making it convenient to adjust prices at any time for bathhouses and parking lots.
Q: Would it be troublesome to add cabinets or increase or decrease grid positions in the future?
A: The product adopts a modular control layout, with newly added cabinets directly connected to the main control. The entire control system does not need to be replaced, and the expansion cost is small. Cabinet compartments can be added in batches according to the site area.
